ZB4BG4K | Schneider Electric
Key switch, 2 positions, unlit, latching, waistband round, black, front ring metal, 2 x 90°, mounting Ø 22 mm, ZB4BG4K
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
58.9883 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
58.99 € *
Price list
Quantity
Price per unit*
1 pcs.
58.9883 €
3 pcs.
56.6202 €
5 pcs.
54.4425 €
*incl. VAT plus shipping costs
Subject to prior sale

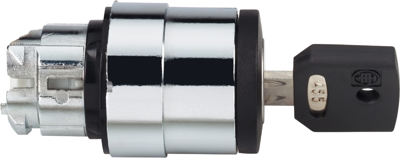

Key switch, ZB4BG4K, Schneider Electric
This head for selector switch is a separate component of the range of control and signaling units, Harmony XB4, metal, diameter 22 mm. It has a chromium-plated metal bezel. It is supplied with black key operated knob. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It features 2 positions maintained, at 90°. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- Various types of connection: screw clamp, connector, Faston connector or spring terminal
- Excellent mechanical connection with operator head
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | key switch | |
| Version | 2 positions | |
| Contact function | latching | |
| Collar shape of the front frame | round | |
| can be illuminated | No | |
| Actuator colour | black | |
| Front ring colour | metal | |
| Installation diameter | 22 mm | |
| Rotation angle | 2 x 90° | |
| Protection class | IP66/IP67/IP69/IP69K |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
