ZB4BG3 | Schneider Electric

Key switch, unlit, latching, waistband round, 3 x 45°, mounting Ø 22 mm, ZB4BG3

Order No.: 06P1540
EAN: 3389110889277
MPN:
ZB4BG3
Series: Harmony ZB4
ZB4BG3 Schneider Electric Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
37.7587 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
37.76 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
37.7587 €

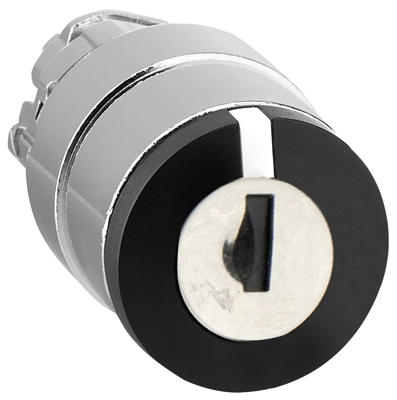

Front element, ZB4BG3, Schneider Electric

This Harmony XB4, black head with key (key no.455) for key selector switch has 3 positions, operates with stay-put mechanism with key withdrawal on center position. This head with key provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units to provide a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Secure machine and system operation with a key, only available to authorized operators. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Key removal allowed in only one of the positions, allowing for advanced interlocking between various parts of a machine or process, while limiting human errors.

Technical specifications
Filter Property Value
Protection class IP66
Contact function latching
Installation diameter 22 mm
Rotation angle 3 x 45°
Collar shape of the front frame round
can be illuminated No
Product type key switch
Logistics
Property Value
Customs tariff number 85389099
Country of origin FR
Compliance
Property Value
RoHS conform Yes
Sustainable Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
