ZB4BG2K3314E | Schneider Electric
Key switch, unlit, latching, waistband round, black, front ring silver, trigger position 0 + 1, mounting Ø 22 mm, ZB4BG2K3314E
Unit Price (€ / pc.)
65.5333 € *
Standard delivery time from the manufacturer is: 2 Weeks

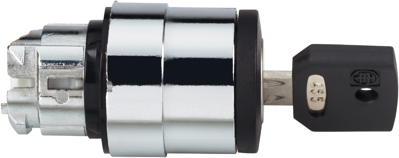

Key switch, ZB4BG2K3314E, Schneider Electric
Front element for Harmony ZB4 key switch. Dimensions (WxHxD) 29x29x72 mm, mounting diameter 22 mm. Mechanical service life 1000000 cycles. Lock type Ronis 3314E, round head shape. With high vibration resistance and chemical resistance, ambient temperature -40 to +70 degrees °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| can be illuminated | No | |
| Trigger position key | 0 + 1 | |
| Protection class | IP69K | |
| Installation diameter | 22 mm | |
| Front ring colour | silver | |
| Actuator colour | black | |
| Product type | key switch | |
| Collar shape of the front frame | round | |
| Contact function | latching |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Sustainable | Yes |
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
