ZB4BG2K3243E | Schneider Electric

Key switch, unlit, latching, waistband round, 2 x 90°, trigger position 0 + 1, mounting Ø 22 mm, ZB4BG2K3243E

Order No.: 06P1532
EAN: 4099889232271
MPN:
ZB4BG2K3243E
Series: Harmony ZB4
ZB4BG2K3243E Schneider Electric Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
65.5333 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
65.53 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
65.5333 €

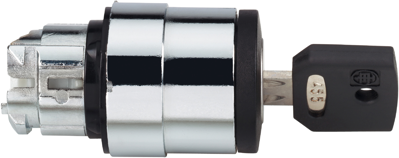

Key switch, ZB4BG2K3243E, Schneider Electric

Front element for Harmony ZB4 key switch. Dimensions (WxHxD) 29x29x72 mm, mounting diameter 22 mm. Mechanical life 1000000 cycles. Lock type special key, round head shape. With high vibration and chemical resistance, ambient temperature -40 to +70 degrees °C.

Technical specifications
Contact function latching
Installation diameter 22 mm
Trigger position key 0 + 1
Product type key switch
Protection class IP66
Rotation angle 2 x 90°
Collar shape of the front frame round
can be illuminated No
Logistics
Country of origin FR
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
Sustainable Yes
