ZB4BG2K3222E | Schneider Electric

Key switch, unlit, latching, waistband round, black, front ring silver, trigger position 0 + 1, mounting Ø 22 mm, ZB4BG2K3222E

Order No.: 06P1530
EAN: 4099889232257
MPN:
ZB4BG2K3222E
Series: Harmony ZB4
ZB4BG2K3222E Schneider Electric Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
65.5333 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
65.53 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
65.5333 €

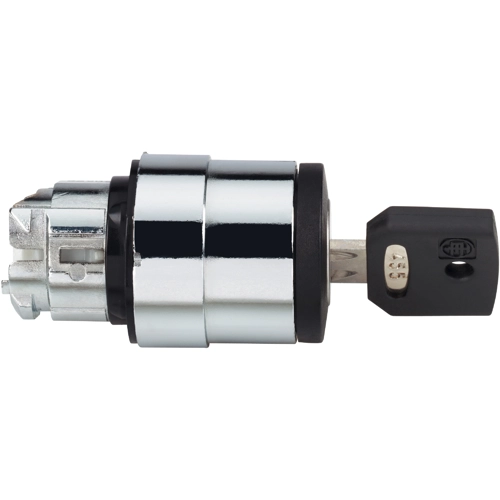

Key switch, ZB4BG2K3222E, Schneider Electric

Front element for Harmony ZB4 key switch. 2 positions 90°. Dimensions (WxHxD) 29x29x72 mm, mounting diameter 22 mm. Mechanical service life 1000000 cycles. Lock type Ronis 3222E, round head shape. With high vibration resistance and chemical resistance, ambient temperature -40 to +70 degrees °C.

Technical specifications
Contact function latching
Installation diameter 22 mm
Front ring colour silver
Trigger position key 0 + 1
Actuator colour black
Product type key switch
Protection class IP69K
Collar shape of the front frame round
can be illuminated No
Logistics
Country of origin FR
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
Sustainable Yes
