ZB4BG057 | Schneider Electric
Key switch, unlit, latching, waistband round, mounting Ø 22 mm, ZB4BG057
Unit Price (€ / pc.)
45.7317 € *
Standard delivery time from the manufacturer is: 1 Week
Key switch, ZB4BG057, Schneider Electric

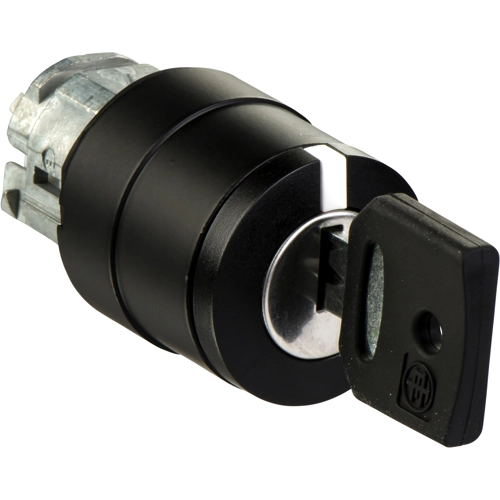

This ergonomic key switch front element in the colour black has 3 positions and is centre-left latching. The front element is mounted in a 22 mm hole. It is attached using a vibration-resistant connection screw. To create a complete unit, this front element can be combined with a mounting flange and a variety of different auxiliary switches and accessories. In addition to high vibration resistance and a very long service life, this device is also characterised by an extremely high possible ambient temperature. Suitable for international use due to the large number of existing product standards and certifications.
Technical specifications
| Contact function | latching | |
| Installation diameter | 22 mm | |
| Product type | key switch | |
| Protection class | IP66 | |
| Collar shape of the front frame | round | |
| can be illuminated | No |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Sustainable | Yes |
