ZB4BD3 | Schneider Electric
Toggle switch, unlit, latching, waistband round, black, 3 x 45°, mounting Ø 22 mm, ZB4BD3

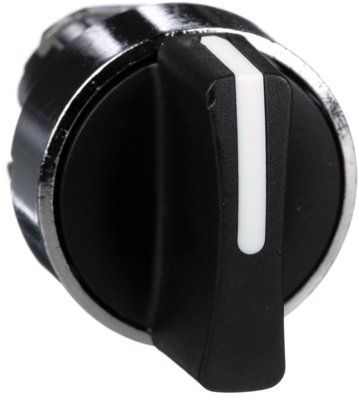

Selector switch head, ZB4BD3, Schneider Electric
This Harmony XB4, black selector switch head with standard handle has 3 positions, operates with stay-put mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
| Contact function | latching | |
| Installation diameter | 22 mm | |
| Actuator colour | black | |
| Product type | toggle switch | |
| Protection class | IP67 | |
| Rotation angle | 3 x 45° | |
| Collar shape of the front frame | round | |
| can be illuminated | No |
| Country of origin | FR |
| Customs tariff number | 85389099 |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Sustainable | Yes |
