ZB4BD204 | Schneider Electric

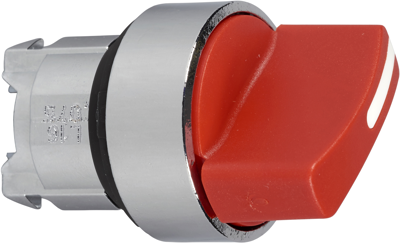

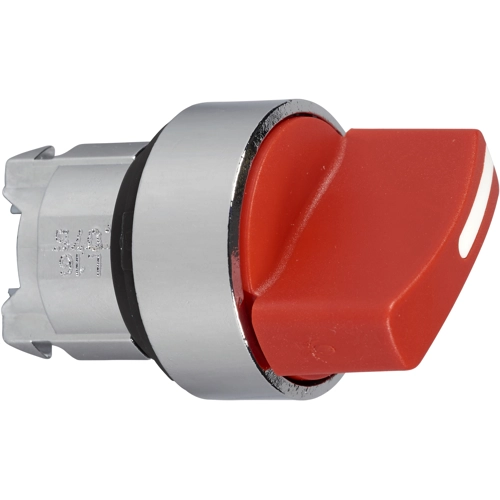

Toggle switch, unlit, latching, waistband round, red, front ring silver, 2 x 90°, mounting Ø 22 mm, ZB4BD204
Front element, ZB4BD204, Schneider Electric
This Harmony XB4, red selector switch head with standard handle has 2 positions, operates with stay-put mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
| Filter | Property | Value |
|---|---|---|
| Protection class | IP67 | |
| Contact function | latching | |
| Installation diameter | 22 mm | |
| Rotation angle | 2 x 90° | |
| Collar shape of the front frame | round | |
| Actuator colour | red | |
| Front ring colour | silver | |
| can be illuminated | No | |
| Product type | toggle switch |
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | FR |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
