XB7NH31 | Schneider Electric
Pushbutton switch, unlit, latching, 1 Form A (N/O), waistband round, green, front ring black, mounting Ø 22 mm, XB7NH31
Unit Price (€ / pc.)
11.3883 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
11.39 € *
Price list
Quantity
Price per unit*
1 pcs.
11.3883 €
5 pcs.
10.8885 €
10 pcs.
10.4125 €
15 pcs.
9.8532 €
*incl. VAT plus shipping costs
Subject to prior sale
Pushbutton, XB7NH31, Schneider Electric

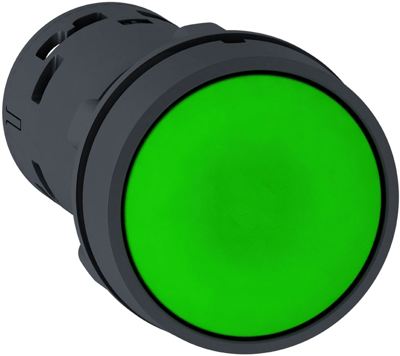

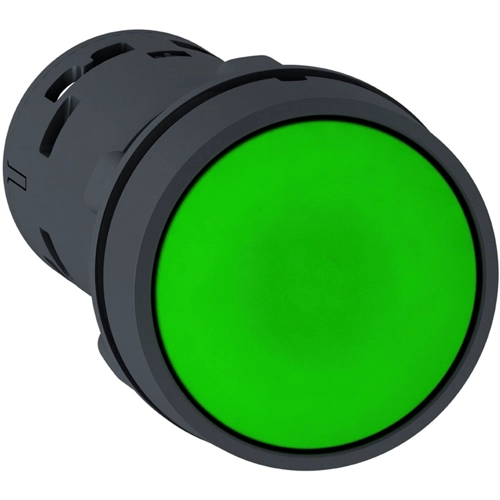

This Harmony XB7, flush monolithic green push button operates with latched push to release mechanism and uses screw-clamp terminals. It is easily installed into a standard 22 mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact function | latching | |
| Latching switching function | 1 Form A (N/O) | |
| Collar shape of the front frame | round | |
| Product type | pushbutton switch | |
| Front ring colour | black | |
| Protection class | IP65 | |
| Actuator colour | green | |
| can be illuminated | No | |
| Connection | screw connection | |
| Installation diameter | 22 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ID |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| SVHC free | Yes |
| RoHS conform | Yes |
