XB7ND21 | Schneider Electric
Toggle switch, unlit, latching, 1 Form A (N/O), waistband round, black, front ring black, 2 x 90°, mounting Ø 22 mm, XB7ND21
Selector switch, XB7ND21, Schneider Electric

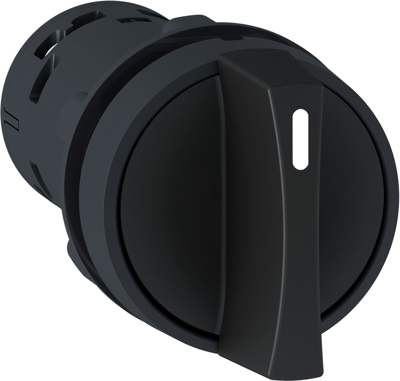

This Harmony XB7, monolithic black selector switch has 2 positions, operates with a stay-put mechanism and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to give your machine multiple different inputs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Contact function | latching | |
Installation diameter | 22 mm | |
Front ring colour | black | |
Actuator colour | black | |
Product type | toggle switch | |
Connection | screw connection | |
Protection class | IP65 | |
Latching switching function | 1 Form A (N/O) | |
Rotation angle | 2 x 90° | |
Collar shape of the front frame | round | |
can be illuminated | No |
Country of origin | ID |
Customs tariff number | 85365080 |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
RoHS conform | Yes |
Sustainable | Yes |
