XB6DW1B5B | Schneider Electric
Pushbutton, illuminable, groping, 1 Form A (N/O) + 1 Form B (N/C), waistband rectangular, white, front ring black, mounting Ø 16 mm, XB6DW1B5B
Unit Price (€ / pc.)
20.0872 € *
Standard delivery time from the manufacturer is: 1 Week

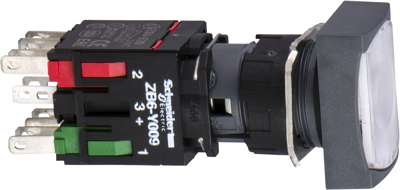

Illuminated pushbutton, XB6DW1B5B, Schneider Electric
This Harmony XB6 white, complete illuminated push button is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a rectangular head shape, with a flush spring return push and is supplied with an integral LED. It features 1 NO + 1 NC slow break contacts and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. This range comes with good color purity and offers the advantage of LED brightness. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | faston plug 2.8 | |
| Actuator colour | white | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Protection class | IP65 | |
| Contact material | silver alloy | |
| Collar shape of the front frame | rectangular | |
| Front ring colour | black | |
| Contact function | groping | |
| Product type | pushbutton | |
| can be illuminated | Yes | |
| Installation diameter | 16 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) |
| Sustainable | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
