XB6DF4B5B | Schneider Electric
Pushbutton switch, illuminable, latching, 1 Form A (N/O) + 1 Form B (N/C), waistband rectangular, red, front ring black, mounting Ø 16 mm, XB6DF4B5B
Unit Price (€ / pc.)
22.8242 € *
Standard delivery time from the manufacturer is: 1 Week

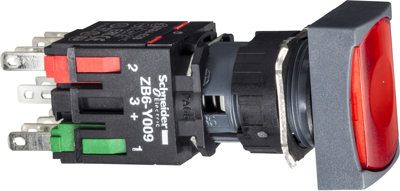

Illuminated pushbutton, XB6DF4B5B, Schneider Electric
This Harmony XB6 red, complete illuminated push button is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a rectangular head shape, with a flush latching push and is supplied with an integral LED. It features 1 NO + 1 NC slow break contacts and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. This range comes with good color purity and offers the advantage of LED brightness. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Contact material | silver alloy | |
| Protection class | IP65 | |
| Connection | faston plug 2.8 | |
| Contact function | latching | |
| Installation diameter | 16 mm | |
| Collar shape of the front frame | rectangular | |
| Actuator colour | red | |
| Front ring colour | black | |
| can be illuminated | Yes | |
| Product type | pushbutton switch |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| Substance description | 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
