XB6CW3B1B | Schneider Electric
Pushbutton, illuminable, groping, 1 Form A (N/O), waistband square, green, front ring black, mounting Ø 16 mm, XB6CW3B1B
Unit Price (€ / pc.)
18.4926 € *
Standard delivery time from the manufacturer is: 1 Week

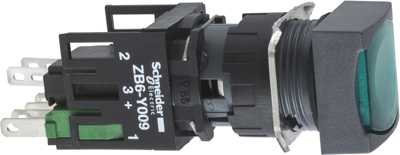

Illuminated pushbutton, XB6CW3B1B, Schneider Electric
This Harmony XB6 green, complete illuminated push button is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a square head shape, with a flush spring return push and is supplied with an integral LED. It features 1 NO slow break contact and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. This range comes with good color purity and offers the advantage of LED brightness. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.
Technical specifications
| Contact function | groping | |
| Installation diameter | 16 mm | |
| Front ring colour | black | |
| Actuator colour | green | |
| Product type | pushbutton | |
| Connection | faston plug 2.8 | |
| Protection class | IP65 | |
| Latching switching function | 1 Form A (N/O) | |
| Contact material | silver alloy | |
| Collar shape of the front frame | square | |
| can be illuminated | Yes |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) |
| SVHC free | No |
| RoHS conform | Yes |
| Sustainable | Yes |
