XB6AGC5B | Schneider Electric
Key switch, unlit, latching, 1 Form A (N/O) + 1 Form B (N/C), waistband round, black, front ring black, 2 x 70°, mounting Ø 16 mm, XB6AGC5B
Unit Price (€ / pc.)
30.1903 € *
Standard delivery time from the manufacturer is: 1 Week

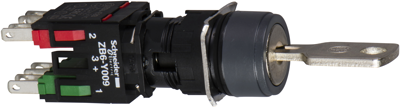

Key switch, XB6AGC5B, Schneider Electric
This Harmony XB6, complete key selector switch is part of the range diameter 16 mm plastic, Harmony XB6 monolithic. It has a a circular head shape, and is supplied with a Ronis key no. 200 operated knob. It features 2 positions maintained, at 70°. It features 1 NO + 1 NC slow break contacts and faston connection type. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It weighs 36g. Its reduced diameter 16 mm makes it suitable to applications where less space is available for mounting, like small machines and control panels.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | faston plug 2.8 | |
| Actuator colour | black | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Protection class | IP65 | |
| Contact material | silver alloy | |
| Collar shape of the front frame | round | |
| Front ring colour | black | |
| Contact function | latching | |
| Product type | key switch | |
| Rotation angle | 2 x 70° | |
| can be illuminated | No | |
| Installation diameter | 16 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Sustainable | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
