XB5AW33G5C0 | Schneider Electric
Pushbutton, for universal LED, illuminable, 1 Form A (N/O) + 1 Form B (N/C), waistband round, green, front ring light gray, mounting Ø 22.5 mm, XB5AW33G5C0
Unit Price (€ / pc.)
33.8793 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
33.88 € *
Price list
Quantity
Price per unit*
1 pcs.
33.8793 €
3 pcs.
32.4037 €
5 pcs.
30.6306 €
7 pcs.
29.0360 €
*incl. VAT plus shipping costs
Subject to prior sale

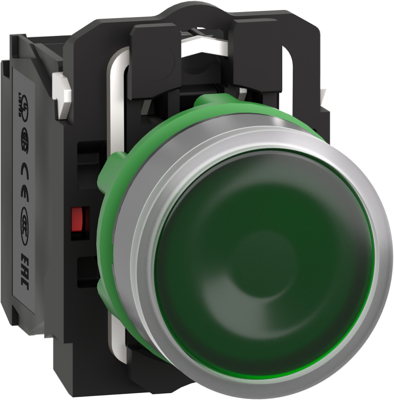

Illuminated push button, XB5AW33G5C0, Schneider Electric
This illuminated push-button provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long-lasting LED illumination.
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- Excellent mechanical connection with operator head
- A wide choice of contact blocks for general purposes or specific applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Collar shape of the front frame | round | |
| Actuator colour | green | |
| Connection | screw connection | |
| Installation height | 42 mm | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| can be illuminated | Yes | |
| Contact material | silver alloy | |
| Protection class | IP66/IP67 | |
| Front ring colour | light gray | |
| Installation depth | 57 mm | |
| Version | for universal LED | |
| Installation diameter | 22.5 mm | |
| Product type | pushbutton |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
