XB4FK123M5 | Schneider Electric
Toggle switch, 2 positions, illuminable, latching, 1 Form A (N/O) + 1 Form B (N/C), waistband round, green, front ring metallized, 90°, mounting Ø 30.5 mm, XB4FK123M5
Unit Price (€ / pc.)
47.8975 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
47.90 € *
Price list
Quantity
Price per unit*
1 pcs.
47.8975 €
2 pcs.
45.9816 €
3 pcs.
44.2204 €
*incl. VAT plus shipping costs
Subject to prior sale

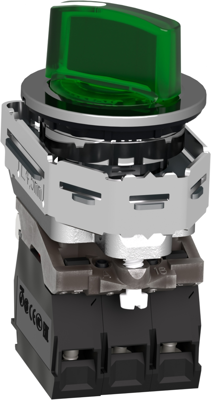

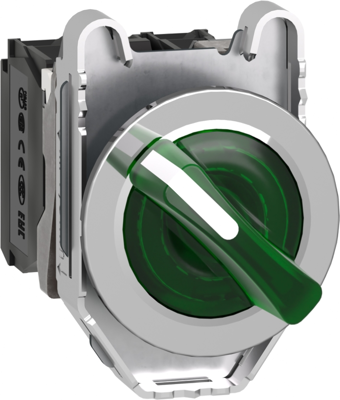

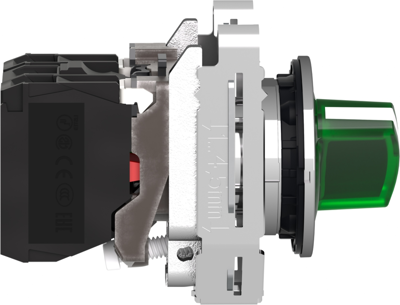

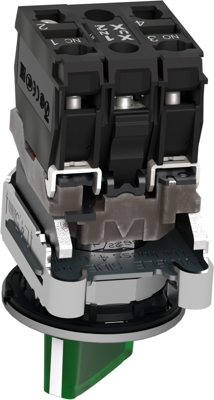

Illuminated selector switch, XB4FK123M5, Schneider Electric
Illuminated selector switch, Harmony XB4, metal, green handle, 30mm, universal LED, 2 positions, 1NO + 1NC, 230...240V AC.
Features
- Universal LED block to be used for all colors
- Improved color intensity and brightness
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Actuator colour | green | |

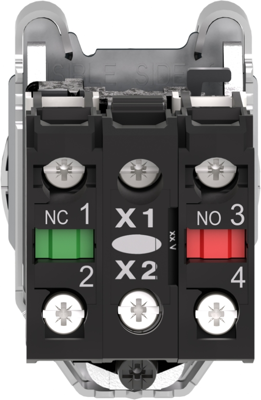

| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Protection class | IP66/IP67/IP69/IP69K | |
| Collar shape of the front frame | round | |
| Front ring colour | metallized | |
| Version | 2 positions | |
| Contact function | latching | |
| Product type | toggle switch | |
| Rotation angle | 90° | |
| can be illuminated | Yes | |
| Installation diameter | 30.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
