XB4BW31G5 | Schneider Electric
Pushbutton, illuminable, groping, 1 Form A (N/O) + 1 Form B (N/C), waistband round, white, front ring silver, mounting Ø 22 mm, XB4BW31G5
Unit Price (€ / pc.)
36.9852 € *
Standard delivery time from the manufacturer is: 1 Week

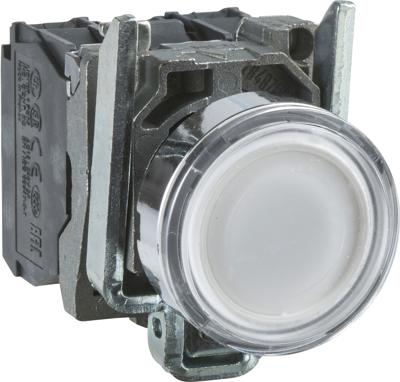

Illuminated pushbutton, XB4BW31G5, Schneider Electric
This Harmony XB4 illuminated modular white push button operates with a spring return mechanism, is supplied with 110V to 120V AC, uses an integral LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Technical specifications
| Contact function | groping | |
| Installation diameter | 22 mm | |
| Front ring colour | silver | |
| Actuator colour | white | |
| Product type | pushbutton | |
| Connection | screw connection | |
| Protection class | IP66 | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Collar shape of the front frame | round | |
| can be illuminated | Yes |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Sustainable | Yes |
