XB4BV5B6 | Schneider Electric
Signal light, waistband round, blue, front ring silver, mounting Ø 22 mm, XB4BV5B6
Unit Price (€ / pc.)
49.5040 € *
Available: 0 pcs.
Leadtime: On Request **

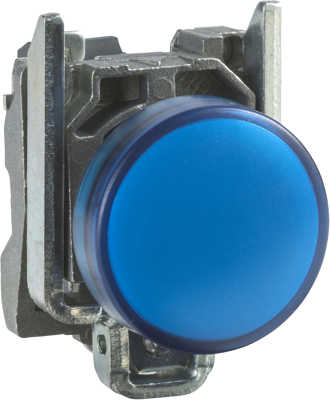

Indicator light, XB4BV5B6, Schneider Electric
This Harmony XB4 plain lens modular blue pilot light is supplied with 400V AC, uses an integral LED with transformer. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indicator of process and machine operations, is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination and transformer. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments.
Technical specifications
| Connection | screw connection | |
| Version | signal light | |
| Collar shape of the front frame | round | |
| Installation diameter | 22 mm | |
| Actuator colour | blue | |
| Front ring colour | silver | |
| Protection class | IP66 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85318070 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| Sustainable | Yes |
