XB4BP482EX | Schneider Electric

Pushbutton, unlit, groping, 1 Form B (N/C), waistband round, red, front ring silver, mounting Ø 22 mm, XB4BP482EX

Order No.: 05P3133
EAN: 4099889225686
MPN:
XB4BP482EX
XB4BP482EX Schneider Electric Actuators, Signal Elements and Front Elements

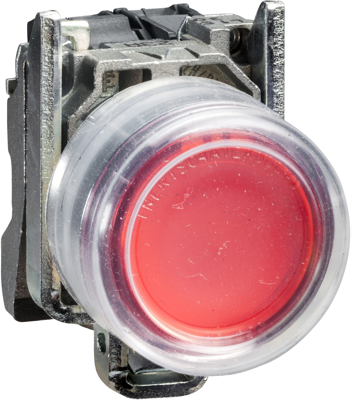

Image may differ
Unit Price (€ / pc.)
66.1878 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
66.19 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
66.1878 €

Pushbutton, XB4BP482EX, Schneider Electric

This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22 mm metal pushbuttons, switches and pilot lights for explosive atmosphere. This red pushbutton has a circular head shape with a booted, clear silicon flush push. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22. This pushbutton with booted clear silicon push for insertion of legend provides an ergonomic and visual interface for controlling machines. It comes with 1 NC contact with slow-break operation and operates with a spring return mechanism. It has silver alloy contact material. It has a chromium plated metal bezal and has a 22 mm diameter head.

This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22 mm diameter panel cut-outs and connected to control circuits with screw-clamp connections.

Technical specifications
Contact function groping
Installation diameter 22 mm
Front ring colour silver
Actuator colour red
Product type pushbutton
Connection screw connection
Protection class IP66
Latching switching function 1 Form B (N/C)
Collar shape of the front frame round
can be illuminated No
Logistics
Country of origin FR
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
Sustainable Yes
