XB4BP42 | Schneider Electric
Pushbutton, unlit, groping, 1 Form B (N/C), waistband round, red, front ring silver, mounting Ø 22 mm, XB4BP42
Unit Price (€ / pc.)
17.8381 € *
Available in 3 Days: 47 pcs. - if ordered today

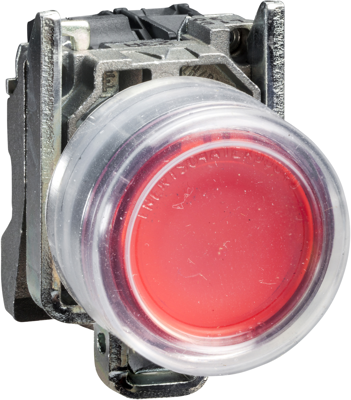

Push button, XB4BP42, Schneider Electric
This Harmony XB4 modular red push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Actuator colour | red | |
| Latching switching function | 1 Form B (N/C) | |
| Protection class | IP66 | |
| Collar shape of the front frame | round | |
| Front ring colour | silver | |
| Contact function | groping | |
| Product type | pushbutton | |
| can be illuminated | No | |
| Installation diameter | 22 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
