XB4BP31 | Schneider Electric

Pushbutton, unlit, groping, 1 Form A (N/O), waistband round, green, front ring silver, mounting Ø 22 mm, XB4BP31

Order No.: 05P3124
EAN: 3389110887006
MPN:
XB4BP31
Series: Harmony XB4
XB4BP31 Schneider Electric Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
17.8381 € *
Available in 3 Days: 27 pcs. - if ordered today
Total Price:
17.84 € *
Price list
Quantity
Price per unit*
1 pcs.
17.8381 €
5 pcs.
17.3502 €
*incl. VAT plus shipping costs
Subject to prior sale

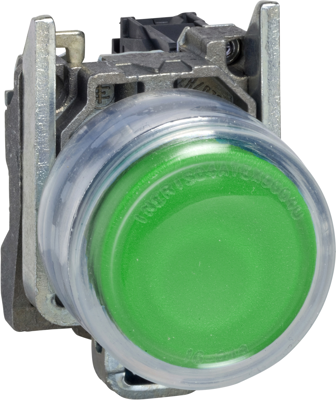

Push button, XB4BP31, Schneider Electric

This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Technical specifications
Filter Property Value
Connection screw connection
Actuator colour green
Latching switching function 1 Form A (N/O)
Protection class IP66
Collar shape of the front frame round
Front ring colour silver
Contact function groping
Product type pushbutton
can be illuminated No
Installation diameter 22 mm
Logistics
Property Value
Country of origin FR
Customs tariff number 85365080
Compliance
Property Value
RoHS conform Yes
Sustainable Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
