XB4BG61 | Schneider Electric
Key switch, unlit, latching, 1 Form A (N/O), waistband round, black, 2 x 90°, mounting Ø 22 mm, XB4BG61
Unit Price (€ / pc.)
47.1240 € *
Available in 3 Days: 288 pcs. - if ordered today
Total Price:
47.12 € *
Price list
Quantity
Price per unit*
1 pcs.
47.1240 €
5 pcs.
45.8507 €
*incl. VAT plus shipping costs
Subject to prior sale

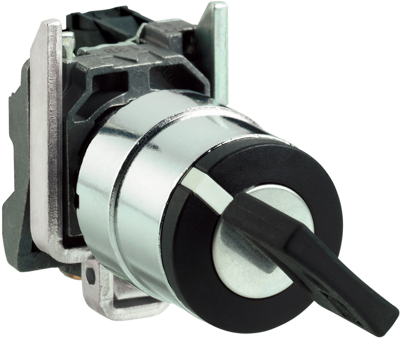

Key switch, XB4BG61, Schneider Electric
This Harmony XB4 modular black key selector switch (key no.455) has 2 positions, operates with a spring-return-to-left mechanism with key withdrawal on the left position. It has a metal bezel. This key selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22 mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact function | latching | |
| Connection | screw connection | |
| Latching switching function | 1 Form A (N/O) | |
| Actuator colour | black | |
| Product type | key switch | |
| can be illuminated | No | |
| Collar shape of the front frame | round | |
| Rotation angle | 2 x 90° | |
| Installation diameter | 22 mm | |
| Protection class | IP66 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Sustainable | Yes |
| Substance description | Lead |
