XB4BG03 | Schneider Electric
Key switch, unlit, latching, 2 Form A (N/O), waistband round, black, front ring black, 3 x 45°, trigger position 0 + 1 + 2, mounting Ø 22 mm, XB4BG03
Unit Price (€ / pc.)
56.0371 € *
Available: 3 pcs.
Available in 3 Days: 181 pcs. - if ordered today
Total Price:
56.04 € *
Price list
Quantity
Price per unit*
1 pcs.
56.0371 €
5 pcs.
54.5258 €
*incl. VAT plus shipping costs
Subject to prior sale

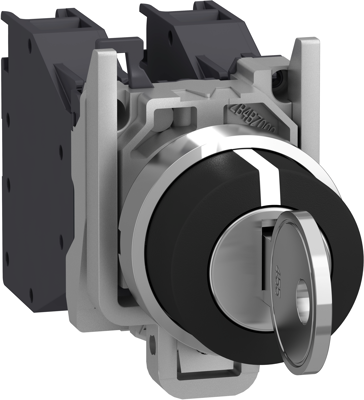

Key switch, XB4BG03, Schneider Electric
This Harmony XB4 modular black key selector switch (key no.455) has 3 positions, operates with a stay-put mechanism with key withdrawal on the center position. It has a metal bezel. This key selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 22 mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | key switch | |
| Contact function | latching | |
| Latching switching function | 2 Form A (N/O) | |
| Collar shape of the front frame | round | |
| can be illuminated | No | |
| Actuator colour | black | |
| Front ring colour | black | |
| Connection | screw connection | |
| Installation diameter | 22 mm | |
| Rotation angle | 3 x 45° | |
| Trigger position key | 0 + 1 + 2 | |
| Protection class | IP66 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Sustainable | Yes |
| RoHS conform | Yes |
