XB4BC21GEX | Schneider Electric

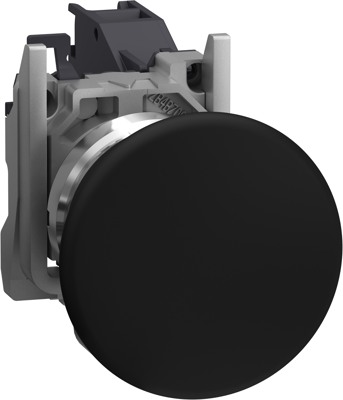

Mushroom pushbutton, unlit, 1 Form A (N/O), waistband round, black, front ring metal, mounting Ø 22 mm, XB4BC21GEX
Complete push button, XB4BC21GEX, Schneider Electric
This product is part of the Harmony XB4 - ATEX D range, an offer of Ø 22mm metal pushbuttons, switches and pilot lights for explosive atmosphere. It is a black pushbutton with mushroom head. This offer is specially designed for explosive atmosphere. It is designed for used in dust zone 21-22 and gas zone 1-2. This mushroom headed pushbutton provides an ergonomic interface for controlling machines. It comes with 1 NO contact with slow-break operation and operates with a spring return mechanism. It has silver alloy contact material. It has a chromium plated metal bezal and has a 40mm mushroom diameter head. This offer is specially designed for applications in Oil and Gas industry as well as Food and beverage, car gas stations etc. It is an IP65 rated product and comes with INERIS 04ATEX9004U certification. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. The Harmony XB4 range offers innovative features for simple and efficient use. The Harmony XB4 - ATEX is the most comprehensive explosive Atmospheres range covering most applications.
Features
- Metal bezel making it ideal for severe environments
- Simple design for easy installation, servicing, modification and adaption
- Compatible with standard 22mm cutout
- High lifetime and less maitanence due to simple spring return mechanism
- Easy replacement and servicing due to screw clamp connection
Filter | Property | Value |
---|---|---|
Collar shape of the front frame | round | |
Latching switching function | 1 Form A (N/O) | |
can be illuminated | No | |
Protection class | IP65 | |
Installation depth | 58 mm | |
Connection | screw connection | |
Installation diameter | 22 mm | |
Front ring colour | metal | |
Product type | mushroom pushbutton | |
Actuator colour | black |
Property | Value |
---|---|
Country of origin | FR |
Customs tariff number | 85365080 |
Property | Value |
---|---|
SVHC free | Yes |
Date of RoHS guidelines | 3/31/15 |
RoHS conform | Yes |
