XB4BC21 | Schneider Electric
Pushbutton, unlit, groping, 1 Form A (N/O), waistband round, black, front ring silver, mounting Ø 22 mm, XB4BC21

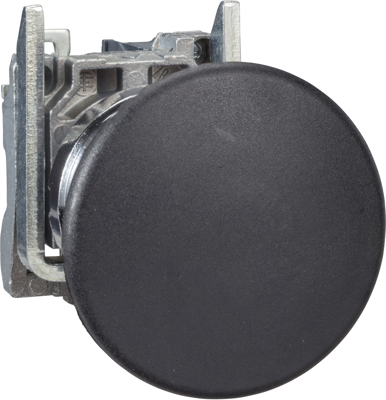

Mushroom pushbutton, XB4BC21, Schneider Electric
This Harmony XB4 40mm mushroom head modular black push button operates with a spring return / impulse mechanism. It has a metal bezel. This 40mm mushroom shaped push button is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
| Filter | Property | Value |
|---|---|---|
| Latching switching function | 1 Form A (N/O) | |
| Protection class | IP66 | |
| Connection | screw connection | |
| Contact function | groping | |
| Installation diameter | 22 mm | |
| Collar shape of the front frame | round | |
| Actuator colour | black | |
| Front ring colour | silver | |
| can be illuminated | No | |
| Product type | pushbutton |
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | CZ |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
