XB4BA25 | Schneider Electric
Pushbutton, unlit, 1 Form A (N/O) + 1 Form B (N/C), waistband round, black, front ring silver, mounting Ø 22 mm, XB4BA25
NCNR (non cancelable / non returnable)

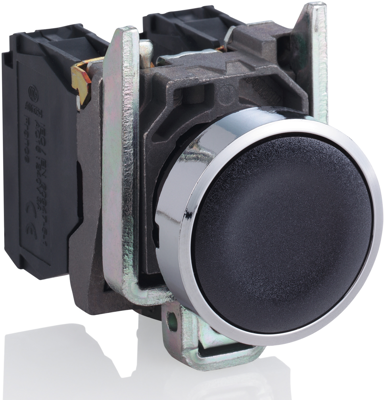

Pushbutton, XB4BA25, Schneider Electric
This Harmony XB4 modular push button operates with a spring return / impulse mechanism. It has a chromium-plated metal bezel and is supplied with a black flush cap, unmarked. It features 1 NO + 1 NC slow break contacts and screw-clamp terminals connection type. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22 mm diameter panel cut-outs.
It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. It weighs 80g. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications.
| Filter | Property | Value |
|---|---|---|
| Product type | pushbutton | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Collar shape of the front frame | round | |
| can be illuminated | No | |
| Actuator colour | black | |
| Front ring colour | silver | |
| Installation diameter | 22 mm | |
| Protection class | IP66/IP67/IP69/IP69K |
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
