XACB9122 | Schneider Electric
Pushbutton, unlit, groping, waistband round, black, front ring black, mounting Ø 22 mm, XACB9122
Unit Price (€ / pc.)
4.9861 € *
Available in 3 Days: 10 pcs. - if ordered today
Pushbutton, XACB9122, Schneider Electric

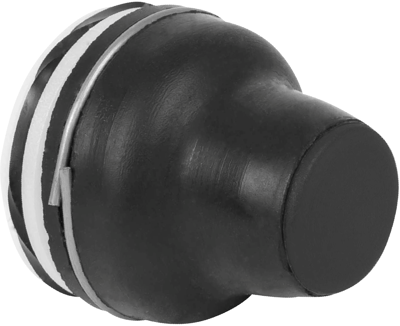

This Harmony XACB9122 is a booted head for push button black 4 mm travel, -40°C to +70 °C. It is part of the range Harmony XAC pendant control stations for diameter 22 mm plastic signaling units.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| can be illuminated | No | |
| Installation diameter | 22 mm | |
| Collar shape of the front frame | round | |
| Front ring colour | black | |
| Actuator colour | black | |
| Protection class | IP65 | |
| Product type | pushbutton | |
| Contact function | groping |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
