KBC1Z | Schneider Electric

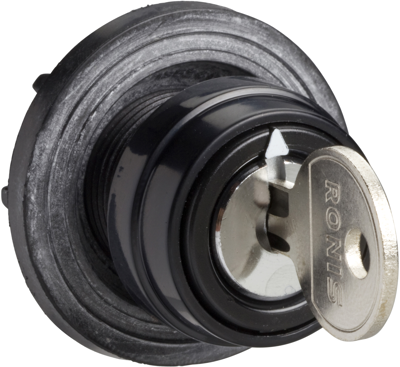

Key switch, cam switch operating head, unlit, waistband square, silver, front ring black, mounting Ø 22 mm, KBC1Z
Unit Price (€ / pc.)
34.153 € *
Available in 3 Days: 6 pcs. - if ordered today
Actuating element, KBC1Z, Schneider Electric
Actuator 45x45 mm, silver color- lock, for engraving. Cam switches with diameter 16-22 mm. Cam switches designed for industry combine easy assembly with great flexibility and robust design.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Collar shape of the front frame | square | |
| Protection class | IP65 | |
| Front ring colour | black | |
| can be illuminated | No | |
| Installation diameter | 22 mm | |
| Type of mounting | front panel mounting | |
| Actuator colour | silver | |
| Product type | key switch | |
| Version | cam switch operating head |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
