KAXZ1S142 | Schneider Electric

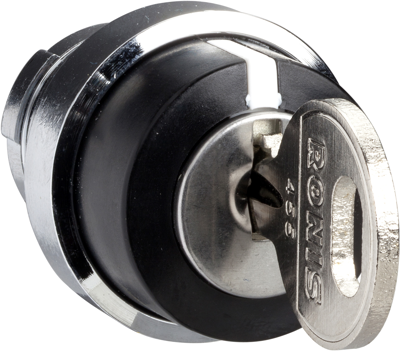

Key switch, cam switch operating head, unlit, waistband round, silver, front ring black/silver, mounting Ø 22 mm, KAXZ1S142
Unit Price (€ / pc.)
19.8016 € *
Standard delivery time from the manufacturer is: 2 Weeks
Actuating element, KAXZ1S142, Schneider Electric
Actuating element w. front ring Ø 28,5 mm, metal, key Ronis 421. Cam switches with diameter 16-22 mm. The cam switches designed for industrial use combine easy assembly with great flexibility and robust design.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Actuator colour | silver | |
| Product type | key switch | |
| Type of mounting | front panel mounting | |
| can be illuminated | No | |
| Collar shape of the front frame | round | |
| Version | cam switch operating head | |
| Installation diameter | 22 mm | |
| Protection class | IP65 | |
| Front ring colour | black/silver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Sustainable | Yes |
