A9E18330 | Schneider Electric

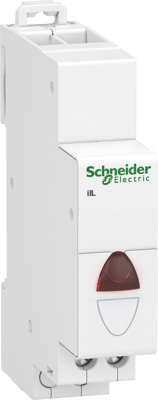

Signal light, illuminable, red, A9E18330

Order No.: 01P7229
EAN: 4099889224610
MPN:
A9E18330
Series: ilL
A9E18330 Schneider Electric Actuators, Signal Elements and Front Elements
Image may differ
Unit Price (€ / pc.)
23.1931 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
23.19 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
23.1931 €

Indicator light, A9E18330, Schneider Electric

This Acti 9 iIL is a single-phase voltage presence indicator light. The voltage is 12VAC to 48VAC or 12VDC to 48VDC. The red light on the front face lights up to indicate that a voltage is present. The connection could be done with flexible copper cables or with ferrule cables from 0.5mm² up to 2 x 2.5mm². The tightening torque for the PZ1 screwdriver to connect screw connections is 1N.m. The connection could be done with rigid copper cables from 0.5mm² minimum up to 2 x 2.5mm2 maximum. It comes with staggered terminals to simplify the connection. The LED indication light maximum consumption per indicator light is 0.3W. The Operating frequency is 50Hz or 60Hz. The service life of the LED indicator light is 100000h of constant lightning efficiency. Because of the non-interchangeability of LEDs it is a maintenance-free device. The tropicalization is Treatment 2 (relative humidity 95% at 55°C). The degree of protection is IP20. The pollution degree is 3. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 82mm x (D) 69.5mm. The weight is 65g. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 80°C. This product complies with IEC/EN 60947-5-1 standard.

Technical specifications
Type of mounting DIN rail
Actuator colour red
Product type signal light
Protection class IP20
can be illuminated Yes
Logistics
Country of origin BE
Customs tariff number 85319000
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
Sustainable Yes
