9001SKS53FB | Schneider Electric
Toggle switch, unlit, latching, waistband round, black, front ring silver, 3 x 45°, mounting Ø 30 mm, 9001SKS53FB
Unit Price (€ / pc.)
88.3575 € *
Standard delivery time from the manufacturer is: 2 Weeks

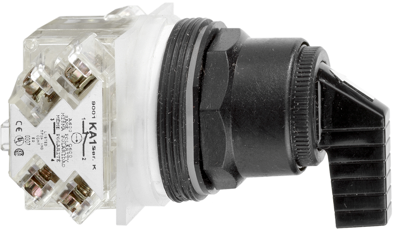

Selector switch, 9001SKS53FB, Schneider Electric
This selector switch with long handle provides a versatile interface for controlling your machines. It is easily installed into a standard 30 mm diameter panel cut-outs and is easily connected to control circuits. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Protection class | IP66 | |
| Contact function | latching | |
| Installation diameter | 30 mm | |
| Rotation angle | 3 x 45° | |
| Collar shape of the front frame | round | |
| Actuator colour | black | |
| Front ring colour | silver | |
| can be illuminated | No | |
| Product type | toggle switch |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
