ILM62DB4A000 | Schneider Electric
Distribution block for Lexium 62 ILM, L 230 mm, 20 A, ILM62DB4A000
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
758.625 € *
Available in 3 Days: 20 pcs. - if ordered today

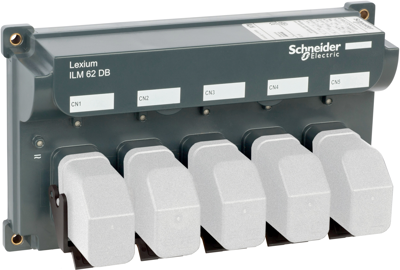

Distribution block, ILM62DB4A000, Schneider Electric
This product is part of the PacDrive 3 range, an offer of distribution boxes for Lexium 62 ILM daisy chains. This distribution block features 1 input and 4 outputs. The distribution block with SERCOS III physical interface at 100Mbit/s transmission rate. It is a distribution box with rated supply voltage of 250 V to 700 V, control circuit voltage of 24V DC and 20A input current. It is an IP65 rated product. The box is made of polycarbonate. Its dimensions are 230 mm (width) x 151.4 mm (depth) x 94 mm (height). It weighs 0.85 kg. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | distribution block | |
| Length | 230 mm | |
| Rated current | 20 A | |
| Suitable for | Lexium 62 ILM |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
