NSYZZ254G | Schneider Electric

Base, polyester, (L x W x H) 410 x 535 x 200 mm, light gray, for enclosure, NSYZZ254G

Order No.: 02P3628
EAN: 3606480726279
MPN:
NSYZZ254G
Series: PanelSet PLA
NSYZZ254G Schneider Electric Accessories for Enclosures
Image may differ
Unit Price (€ / pc.)
359.5466 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
359.55 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
359.5466 €

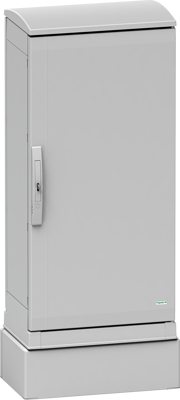

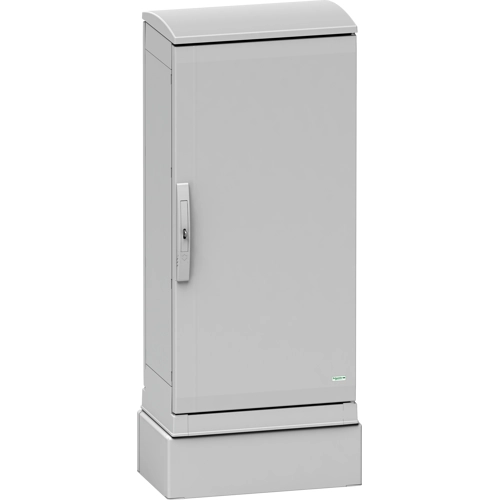

Polyester plinth, NSYZZ254G, Schneider Electric

Plinth to be used with Thalassa PLA and Thalassa PHD enclosures. The plinth is to be used in multi-purpose applications. The width is 535 mm, the height is 200 mm, the depth is 410 mm. The kit is made of fixing elements, 2 front panels and 2 side parts. The product is made of grey plastic (RAL 7035). Ingress protection rating is IP44, mechanical protection rating is IK10. This product is qualified as a green premium, with minimal use of hazardous substances.

Technical specifications
Degree of protection (IP) IP44
Material polyester
Suitable for enclosure
Product type base
Colour light gray
Length 410 mm
Width 535 mm
Height 200 mm
Logistics
Country of origin FR
Customs tariff number 85389099
Compliance
SVHC free Yes
RoHS conform Yes
Sustainable Yes
Date of RoHS guidelines 3/31/15
