NSYSPF8200 | Schneider Electric
Base front part, sheet steel, (W x H) 800 x 200 mm, umbra gray, for enclosure, NSYSPF8200
Unit Price (€ / pc.)
63.2247 € *
Standard delivery time from the manufacturer is: 1 Week
Base front part, NSYSPF8200, Schneider Electric

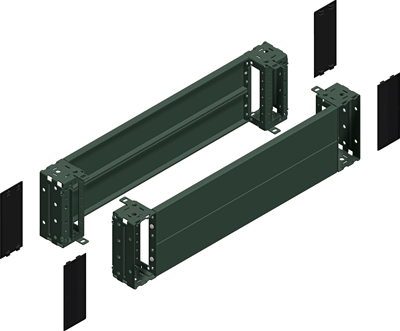

Plinth front to be used with Spacial SF, Spacial SM, Spacial SD, Spacial S3D and Spacial CRN enclosures. The plinth front is to be used in multi-purpose, electronic and compartmentalised applications. The nominal width is 800 mm, the height is 200 mm. The kit is made of fixing elements, 4 corner covers, 4 corners, 2 front panels and 2 rear panels. The product is made of grey Steel (RAL 7022). Anti-corrosion protection is ensured by an epoxy-polyester powder coating. Ingress protection rating is IP30 (complete plinth), mechanical protection rating is IK10 Permanent permissable load is 1300 kg. This product is qualified as a green premium, with minimal use of hazardous substances.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 200 mm | |
| Colour | umbra gray | |
| Degree of protection (IP) | IP30 | |
| Material | sheet steel | |
| Width | 800 mm | |
| Suitable for | enclosure | |
| Product type | base front part |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85381000 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
