NSYSC1240 | Schneider Electric
Rain cover, galvanized steel, (W x H) 1200 x 400 mm, gray, NSYSC1240
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
143.5735 € *
Standard delivery time from the manufacturer is: 1 Week
Spacial SF/SM canopy, NSYSC1240, Schneider Electric

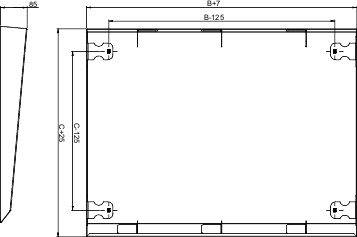

Multi-purpose canopy for Spacial SM and Spacial SF enclosures. The canopy is to be installed on all enclosure models with 1200 mm width and 400 mm depth. The nominal width is 1200 mm and real width is 1207 mm, the nominal depth is 400 mm and real depth is 425 mm, the height is 85 mm fixed by screws - roof drilled holes location on top of enclosure. The canopy is made from galvanised steel (color RAL 7035).
Provides high resistance to impacts, temperature and bad weather Anti-corrosion protection is ensured by epoxy-polyester powder coating. The kit is made up of 1 canopy, fixing elements and drilling template. This product is qualified as a green premium, with minimal use of hazardous substances.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | rain cover | |
| Material | galvanized steel | |
| Width | 1200 mm | |
| Height | 400 mm | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85381000 |
| Country of origin | ES |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
