NSYMM1210 | Schneider Electric
Mounting plate, galvanized steel, (W x H) 950 x 1150 mm, silver, NSYMM1210
Unit Price (€ / pc.)
152.0225 € *
Standard delivery time from the manufacturer is: 1 Week

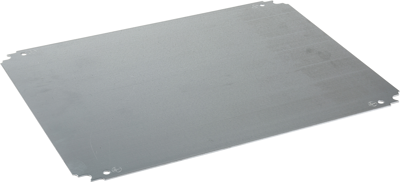

Plain mounting plate, NSYMM1210, Schneider Electric
Plain mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is 1200 x W is 1000 mm. Multi-purpose mounting accessory. Step slide mounting location or direct fixing on backstuds (M8 screws). 180 Kg permissible load, galvanised steel set of 1. Reversible dimensions is can be installed in enclosure with inverted dimensions.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 1150 mm | |
| Width | 950 mm | |
| Colour | silver | |
| Material | galvanized steel | |
| Product type | mounting plate | |
| Type of mounting | screw |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85381000 |
| Country of origin | ES |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| RoHS conform | Yes |
| SVHC free | Yes |
