Cable entry plate, galvanized steel, (L x W x H) 800 x 800 x 30 mm, NSYEC881
Unit Price (€ / pc.)
45.0058 € *
Standard delivery time from the manufacturer is: 1 Week

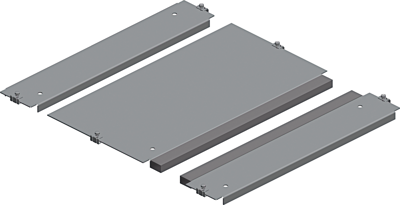

Entry cable gland plate, NSYEC881, Schneider Electric
Multi-purpose and electronic application cable gland plate with 1 entry for Spacial SF and Spacial SFM enclosures. The product is made of galvanised steel the plate is 1,5 mm thick, the nominal width is 800 mm and useful width is 616 mm. The height is 30 mm, the nominal depth is 800 mm and real depth is 655 mm the set contains fixing elements, 1 plate and 15 x 25 mms, the cable gland plate is to be mounted on enclosure bottom. This product is qualified as a green premium, with minimal use of hazardous substances.
Technical specifications
| Width | 800 mm | |
| Height | 30 mm | |
| Length | 800 mm | |
| Product type | cable entry plate | |
| Material | galvanized steel |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85381000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Sustainable | Yes |
