NSYEC861 | Schneider Electric
Cable entry plate, galvanized steel, (L x W x H) 600 x 800 x 30 mm, NSYEC861
Unit Price (€ / pc.)
37.7587 € *
Standard delivery time from the manufacturer is: 1 Week

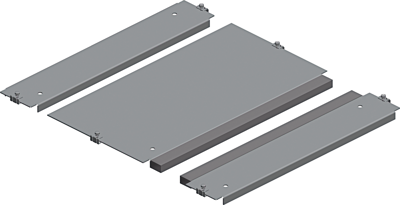

Entry cable gland plate, NSYEC861, Schneider Electric
Electronic application and multi-purpose cable gland plate with 1 entry for Spacial SF and Spacial SFM enclosures. The product is made of galvanised steel the plate is 1,5 mm thick, the nominal width is 800 mm and useful width is 616 mm. The height is 30 mm, the nominal depth is 600 mm and real depth is 650 mm the set contains fixing elements, 1 plate and 15 x 25 mms, the cable gland plate is to be mounted on enclosure bottom. This product is qualified as a green premium, with minimal use of hazardous substances.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 30 mm | |
| Material | galvanized steel | |
| Width | 800 mm | |
| Length | 600 mm | |
| Product type | cable entry plate |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85381000 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
