NSYEC661 | Schneider Electric
Cable entry plate, galvanized steel, (L x W x H) 600 x 600 x 35 mm, NSYEC661
Unit Price (€ / pc.)
33.5461 € *
Standard delivery time from the manufacturer is: 1 Week
Entry cable gland plate, NSYEC661, Schneider Electric

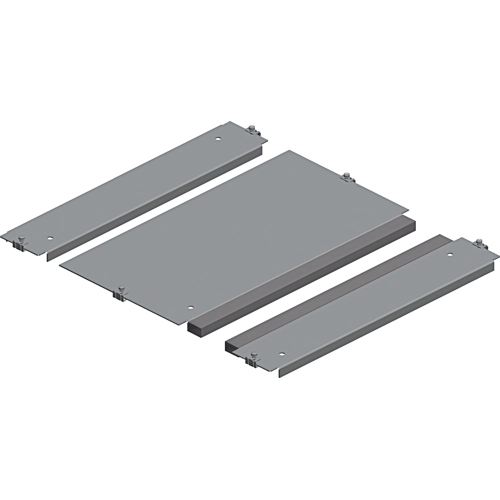

Multi-purpose and electronic application cable gland plate with 1 entry for Spacial SF and Spacial SFM enclosures. The product is made of galvanised steel the plate is 1,5 mm thick, the nominal width is 600 mm and useful width is 416 mm. The height is 35 mm, the nominal depth is 600 mm and real depth is 450 mm the set contains fixing elements, 1 plate and 15 x 25 mms, the cable gland plate is to be mounted on enclosure bottom. This product is qualified as a green premium, with minimal use of hazardous substances.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | galvanized steel | |
| Width | 600 mm | |
| Product type | cable entry plate | |
| Length | 600 mm | |
| Height | 35 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85381000 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
