NSYEC651 | Schneider Electric
Cable entry plate, galvanized steel, (L x W x H) 500 x 600 x 30 mm, NSYEC651
Unit Price (€ / pc.)
31.5469 € *
Standard delivery time from the manufacturer is: 1 Week

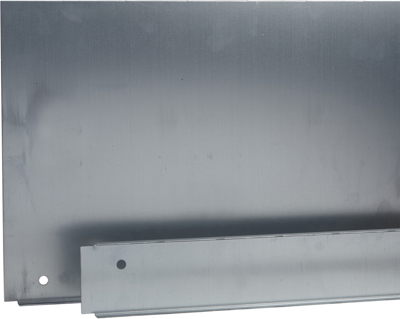

Entry cable gland plate, NSYEC651, Schneider Electric
Multi-purpose cable gland plate with 1 entry for Spacial SF and Spacial SFP enclosures. The product is made of galvanised steel the plate is 1,5 mm thick, the nominal width is 600 mm and useful width is 416 mm. The height is 30 mm, the nominal depth is 500 mm and real depth is 450 mm the set contains fixing elements, 1 plate and 15 x 25 mms, the cable gland plate is to be mounted on enclosure bottom. This product is qualified as a green premium, with minimal use of hazardous substances.
Technical specifications
| Width | 600 mm | |
| Height | 30 mm | |
| Length | 500 mm | |
| Product type | cable entry plate | |
| Material | galvanized steel |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85381000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Sustainable | Yes |
