NSYEC1041 | Schneider Electric

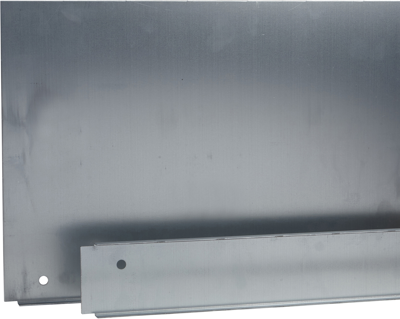

Cable entry plate, galvanized steel, (L x W x H) 400 x 1000 x 30 mm, NSYEC1041

Order No.: 02P0526
EAN: 3606485126326
MPN:
NSYEC1041
Series: PanelSet SFN
NSYEC1041 Schneider Electric Accessories for Enclosures
Image may differ
Unit Price (€ / pc.)
37.5802 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
37.58 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
37.5802 €

Entry cable gland plate, NSYEC1041, Schneider Electric

Multi-purpose cable gland plate with 1 entry for Spacial SF enclosures. The product is made of galvanised steel the plate is 1,5 mm thick, the nominal width is 1000 mm, useful width is 816 mm and real width is 855 mm. The height is 30 mm, the nominal depth is 400 mm, the set contains fixing elements, 1 plate and 15 x 25 mms, the cable gland plate is to be mounted on enclosure bottom. This product is qualified as a green premium, with minimal use of hazardous substances.

Technical specifications
Filter Property Value
Height 30 mm
Material galvanized steel
Width 1000 mm
Length 400 mm
Product type cable entry plate
Logistics
Property Value
Customs tariff number 85381000
Country of origin FR
Compliance
Property Value
RoHS conform Yes
Sustainable Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
