NSYCR400W230VV | Schneider Electric

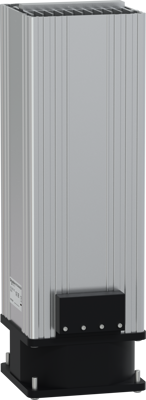

Heater, 400 W, 230 V, aluminum, (L x W x H) 100 x 105 x 270 mm, NSYCR400W230VV
NCNR (non cancelable / non returnable)
Heating resistance, NSYCR400W230VV, Schneider Electric
Resistance heater with fan 400 W, 230 V AC 50/60 Hz for ClimaSys CR Thermal Management System. The product has extruded aluminium body fixing by clips in vertical operating position. The product width is 105 mm, height 270 mm and depth 100 mm. The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure.
The enclosure must be sealed to prevent the entry of air from the outside an electrical protection device must be installed on the supply side of the unit Ingress protection rating IP20 Ambient air temperature for operation -40-70 °C Conforms with UL and VDE certification. This product is qualified as a green premium, with minimal use of hazardous substances.
| Filter | Property | Value |
|---|---|---|
| Product type | heater | |
| Version | 400 W, 230 V | |
| Material | aluminum | |
| Length | 100 mm | |
| Width | 105 mm | |
| Height | 270 mm | |
| Degree of protection (IP) | IP20 |
| Property | Value |
|---|---|
| Customs tariff number | 85168080 |
| Country of origin | CN |
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
