670 10 304 000 | Schill
Cable winders, 4 m, 10 A, orange/black, 670 10 304 000
Order No.: 07L5210
EAN: 4013046670034
MPN:
670 10 304 000
FT 150.4KK310.S316
Unit Price (€ / pc.)
220.9592 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
220.96 € *
Price list
Quantity
Price per unit*
1 pcs.
220.9592 €
3 pcs.
204.5967 €
*incl. VAT plus shipping costs
Subject to prior sale

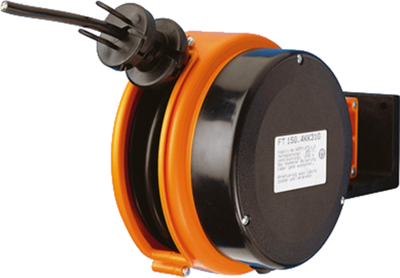

Cable reel for wall and ceiling mounting, type Schill FT150
With silver contact slip rings 10 A/250 VAC. Two transfer contacts per conductor. Stable plastic shaft for smooth running properties, electrically insulated, corrosion resistant. Helical spring drive shaft (during extension of the cable the spring force is increased to compensate for increasing cable load). The cable stop can be disabled.
Version: with fuse terminal block, PVC Schuko-style jack and male connector.
Cable: 4.0 m H05VV-F3G1.0
Rated power: 1250 W
Weight: approx. 1.7 kg
Technical specifications
| Cable length | 4 m | |
| Colour | orange/black | |
| Degree of protection (IP) | IP20 | |
| Rated current | 10 A | |
| USB connection | No | |
| Material | plastic | |
| Overvoltage protection | No | |
| Can be switched off | No | |
| Master-Slave | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
