Differential-mode chokes, 400 Hz, 4 A, 250 VAC, RS612-4-02

default S
default L
Total price
(1.56 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
500 pcs.
1.56 €
*incl. VAT plus shipping costs
Description

Product by Schaffner at Bürklin Elektronik

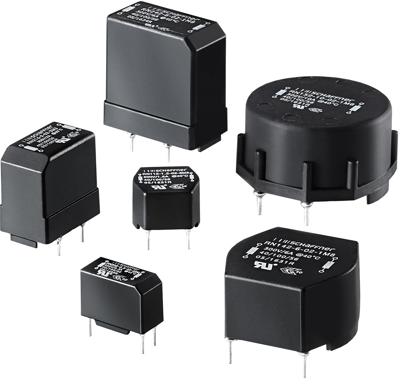

Differential-mode choke, RS612-4-02, SCHAFFNER

The RS612-4-02 is state of the art differential-mode or symmetric chokes, which can be used in various kinds of applications.

Features

  • 3 different applications specified
  • Usable for basic and reinforced equipment
  • Multiple housing options
  • Multiple PCB-mounting options
  • Rated currents from 0.5 to 4 A

Applications

  • Energy filtering
  • Multistage discrete filtering
  • General purpose differential/symmetrical mode filtering
  • SMPS and UPS
  • DC/DC converters
  • Frequency converter
Technical specifications
ohmic resistance 0.01 Ω
Version Differential-mode chokes
Rated Voltage 250 VAC
integrated switch No
max. frequency 0.0004 MHz
max. operating temperature 125 °C
min. operating temperature -40 °C
With fuse No
Rated current 4 A
Show similar products (0)
Logistics
Country of origin TH
Customs tariff number 85363010
Original Packaging Carton with 500 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/17/22
SVHC free Yes
Variations
1 item with 4 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
max. frequency
min. operating temperature
max. operating temperature
Rated current
Differential-mode chokes, 400 Hz, 0.5 A, 250 VAC, RS612-0.5-02
Order No.:
 71D1904
Manufacturer:
 Schaffner
Manufacturer SKU
 RS612-0.5-02
500 pcs.
1.50 €
0.00 € *
Currently not in stock, we will order for you
0.65 Ω
Differential-mode chokes
250 VAC
0.0004 MHz
-40 °C
125 °C
0.5 A
Differential-mode chokes, 400 Hz, 4 A, 250 VAC, RS612-4-02
Order No.:
 71D1907
Manufacturer:
 Schaffner
Manufacturer SKU
 RS612-4-02
500 pcs.
1.56 €
0.00 € *
Currently not in stock, we will order for you
0.01 Ω
Differential-mode chokes
250 VAC
0.0004 MHz
-40 °C
125 °C
4 A
Differential-mode chokes, 400 Hz, 1 A, 250 VAC, RS612-1-02
Order No.:
 71D1905
Manufacturer:
 Schaffner
Manufacturer SKU
 RS612-1-02
500 pcs.
1.52 €
0.00 € *
Currently not in stock, we will order for you
0.13 Ω
Differential-mode chokes
250 VAC
0.0004 MHz
-40 °C
125 °C
1 A
Differential-mode chokes, 400 Hz, 2 A, 250 VAC, RS612-2-02
Order No.:
 71D1906
Manufacturer:
 Schaffner
Manufacturer SKU
 RS612-2-02
500 pcs.
1.54 €
0.00 € *
Currently not in stock, we will order for you
0.03 Ω
Differential-mode chokes
250 VAC
0.0004 MHz
-40 °C
125 °C
2 A
