FN9263S1-6-06 | Schaffner
IEC inlet filter C14, 50 to 400 Hz, 6 A, 250 VAC, 0.3 mH, faston plug 6.3 mm, FN9263S1-6-06
Order No.: 71D1653
EAN: 7612774473145
MPN:
FN9263S1-6-06
806131
Unit Price (€ / pc.)
16.2554 € *
Standard delivery time from the manufacturer is: On Request

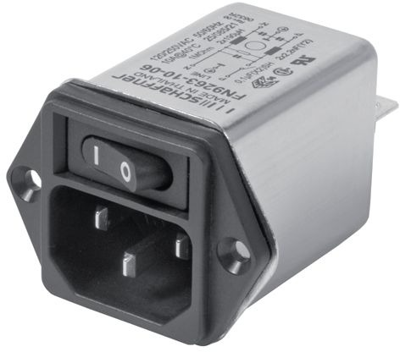

IEC inlet filter, FN9263S1-6-06, SCHAFFNER
The FN9263S1-6-06 is a power entry module that combines an IEC inlet, with excellent filter attenuation and fuses in a small form factor. This product includes a wide selection on amperage ratings and mounting possibilities are designed to offer you the desired solution.
Features
- 1-pole rocker switch
- Compact to fit 1U rack size
- High saturation resistance
- Snap-in version
- Custom-specific version
Applications
- Electrical and electronic equipment
- Household equipment
- Office automation
- Datacom equipment
- Medical equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| integrated switch | Yes | |
| Connection | faston plug 6.3 mm | |
| Rated Voltage | 250 VAC | |
| ohmic resistance | 1000 kΩ | |
| Inductance per line | 0.3 mH | |
| Capacity X|Y | X 100 nF, Y 2.2 nF | |
| Number of phases | 1 | |
| With fuse | No | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -25 °C | |
| Version | IEC inlet filter C14 | |
| max. frequency | 400 Hz | |
| min. frequency | 50 Hz | |
| Rated current | 6 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | TH |
| Original Packaging | Carton with 60 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
