Schaffner

FN9262SB-6-06 | Schaffner

IEC inlet filter C14, 50 to 400 Hz, 6 A, 250 VAC, 3 mH, faston plug 6.3 mm, FN9262SB-6-06

default S
default L
Total price
(13.63 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
60 pcs.
13.63 €
*incl. VAT plus shipping costs
Description

Product by Schaffner at Bürklin Elektronik

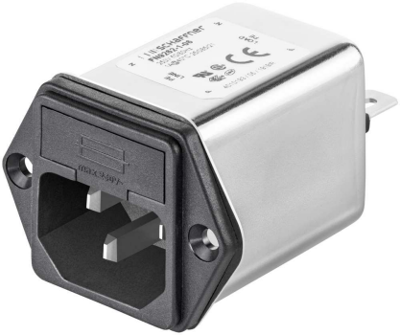

IEC inlet filter, FN9262SB-6-06, SCHAFFNER

The FN9262SB-6-06 is a power entry module that combines and mains with very high filter attenuation based on nano crystalline material selection and fuses in a small form factor. This product includes a wide selection on amperage ratings, mounting possibilities and filters for medical applications.

Features

  • Integrated dual fuse holder
  • Good attenuation performance
  • High saturation resistance
  • Snap-in version
  • Custom-specific version

Applications

  • Portable electrical and electronic equipment
  • Small to medium-sized machines and household equipment
  • Single-phase power supplies, switch-mode power supplies
  • Test and measurement equipment
  • Medical electrical device
Technical specifications
ohmic resistance 1000000 Ω
Connection faston plug 6.3 mm
Number of phases 1
Version IEC inlet filter C14
Rated Voltage 250 VAC
Inductance per line 3 mH
integrated switch No
Capacity X|Y X 220 nF
max. frequency 0.0004 MHz
max. operating temperature 85 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse Yes
Rated current 6 A
Show similar products (0)
Logistics
Customs tariff number 85363010
Original Packaging Carton with 60 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/17/22
SVHC free Yes
Variations
1 item with 5 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
Capacity X|Y
max. frequency
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
IEC inlet filter C14, 50 to 400 Hz, 10 A, 250 VAC, 1.15 mH, faston plug 6.3 mm, FN9262SB-10-06
Order No.:
 71D2090
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9262SB-10-06
60 pcs.
13.76 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X 220 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
10 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 1 A, 250 VAC, 40 mH, faston plug 6.3 mm, FN9262SB-1-06
Order No.:
 71D2086
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9262SB-1-06
60 pcs.
13.22 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X 220 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
1 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 6 A, 250 VAC, 3 mH, faston plug 6.3 mm, FN9262SB-6-06
Order No.:
 71D2089
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9262SB-6-06
60 pcs.
13.63 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X 220 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
6 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 4 A, 250 VAC, 7 mH, faston plug 6.3 mm, FN9262SB-4-06
Order No.:
 71D2088
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9262SB-4-06
60 pcs.
13.49 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X 220 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
4 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 2 A, 250 VAC, 20 mH, faston plug 6.3 mm, FN9262SB-2-06
Order No.:
 71D2087
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9262SB-2-06
60 pcs.
13.22 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X 220 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
2 A
0.00005 MHz
*incl. VAT plus shipping costs
