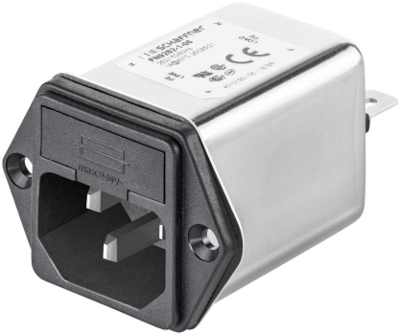

IEC inlet filter C14, 50 to 400 Hz, 6 A, 250 VAC, 3 mH, faston plug 6.3 mm, FN9262-6-06

default S
default L
Total price
(13.63 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per unit*
60 pcs.
13.63 €
*incl. VAT plus shipping costs
Description

Product by Schaffner at Bürklin Elektronik

IEC inlet filter, FN9262-6-06, SCHAFFNER

The FN9262-6-06 is a power entry module that combines and mains with very high filter attenuation based on nano crystalline material selection and fuses in a small form factor. This product includes a wide selection on amperage ratings, mounting possibilities and filters for medical applications.

Features

  • Integrated dual fuse holder
  • Good attenuation performance
  • High saturation resistance
  • Custom-specific version

Applications

  • Portable electrical and electronic equipment
  • Small to medium-sized machines and household equipment
  • Single-phase power supplies, switch-mode power supplies
  • Test and measurement equipment
  • Medical electrical device
Technical specifications
ohmic resistance 1000000 Ω
Connection faston plug 6.3 mm
Number of phases 1
Version IEC inlet filter C14
Rated Voltage 250 VAC
Inductance per line 3 mH
integrated switch No
Capacity X|Y X 220 nF, Y 2.2 nF
max. frequency 0.0004 MHz
max. operating temperature 85 °C
min. frequency 0.00005 MHz
min. operating temperature -25 °C
With fuse Yes
Rated current 6 A
Show similar products (0)
Logistics
Customs tariff number 85363010
Original Packaging Carton with 60 pieces
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/17/22
SVHC free Yes
Variations
1 item with 5 variations
Item description
Price list
Total
ohmic resistance
Version
Rated Voltage
Capacity X|Y
max. frequency
Number of phases
Connection
min. operating temperature
max. operating temperature
Rated current
min. frequency
IEC inlet filter C14, 50 to 400 Hz, 6 A, 250 VAC, 3 mH, faston plug 6.3 mm, FN9262-6-06
Order No.:
 71D2064
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9262-6-06
60 pcs.
13.63 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X 220 nF, Y 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
6 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 4 A, 250 VAC, 7 mH, faston plug 6.3 mm, FN9262-4-06
Order No.:
 71D2063
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9262-4-06
60 pcs.
13.49 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X 220 nF, Y 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
4 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 10 A, 250 VAC, 1.15 mH, faston plug 6.3 mm, FN9262-10-06
Order No.:
 71D2065
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9262-10-06
60 pcs.
13.76 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X 220 nF, Y 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
10 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 1 A, 250 VAC, 40 mH, faston plug 6.3 mm, FN9262-1-06
Order No.:
 71D2061
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9262-1-06
60 pcs.
13.22 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X 220 nF, Y 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
1 A
0.00005 MHz
IEC inlet filter C14, 50 to 400 Hz, 2 A, 250 VAC, 20 mH, faston plug 6.3 mm, FN9262-2-06
Order No.:
 71D2062
Manufacturer:
 Schaffner
Manufacturer SKU
 FN9262-2-06
60 pcs.
13.22 €
0.00 € *
Currently not in stock, we will order for you
1000000 Ω
IEC inlet filter C14
250 VAC
X 220 nF, Y 2.2 nF
0.0004 MHz
1
faston plug 6.3 mm
-25 °C
85 °C
2 A
0.00005 MHz
