FN9260-6-06 | Schaffner

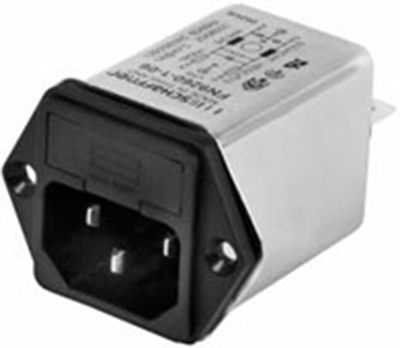

IEC inlet filter C14, 50 to 400 Hz, 6 A, 250 VAC, 300 µH, faston plug 6.3 mm, FN9260-6-06
Unit Price (€ / pc.)
21.1463 € *
Available: 18 pcs.
Total Price:
21.15 € *
Price list
Quantity
Price per unit*
1 pcs.
21.1463 €
10 pcs.
18.5997 €
60 pcs.
17.0765 €
120 pcs.
16.4577 €
480 pcs.
15.4343 €
*incl. VAT plus shipping costs
Subject to prior sale
IEC inlet filter with fuse holder, type Schaffner FN 261/9260.
For two 5 x 20 mm fuses. Compact light-weight design; Capacitance: Cx 100 nF/Cy 2.2 nF. Leakage current: 373 µA. Operating voltage: 250 VAC, 50/60 Hz. Operating frequency: DC to 400 Hz. Test voltage: 2000 VAC. Connection: 6.3 x 0.8 mm solder/tab terminal combination. Test logo: UL, CSA, ENEC 14.
Technical attributes (type, rated current at +40 °C/+25 °C, rated inductance, number of fuses): FN 9260 - 6 - 06, 6.0/6.9 A, 0.3 mH
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | faston plug 6.3 mm | |
| max. frequency | 400 Hz | |
| min. operating temperature | -25 °C | |
| integrated switch | No | |
| Rated Voltage | 250 VAC | |
| ohmic resistance | 1 MΩ | |
| max. operating temperature | 85 °C | |
| Inductance per line | 300 µH | |
| Capacity X|Y | X2 100 nF, Y2 2.2 nF | |
| min. frequency | 50 Hz | |
| Rated current | 6 A | |
| Number of phases | 1 | |
| Version | IEC inlet filter C14 | |
| With fuse | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 60 pieces |
| Customs tariff number | 85363010 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
