FN9260-4-06 | Schaffner

IEC inlet filter C14, 50 to 400 Hz, 4 A, 250 VAC, 1 mH, faston plug 6.3 mm, FN9260-4-06

Order No.: 71D310
EAN: 4099889076370
MPN:
FN9260-4-06
800498
Series: FN9260

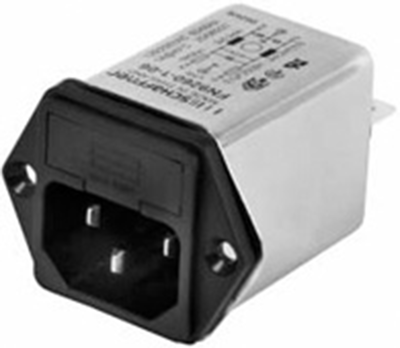

FN9260-4-06 Schaffner Interference suppression filter Image 1

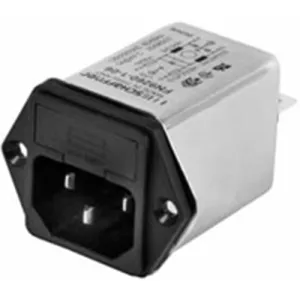

FN9260-4-06 Schaffner Interference suppression filter Image 2
Image may differ
Unit Price (€ / pc.)
20.9202 € *
Available: 23 pcs.
Total Price:
20.92 € *
Price list
Quantity
Price per unit*
1 pcs.
20.9202 €
10 pcs.
18.4093 €
60 pcs.
16.8980 €
120 pcs.
16.2792 €
480 pcs.
15.2796 €
*incl. VAT plus shipping costs
Subject to prior sale

IEC inlet filter with fuse holder, type Schaffner FN 261/9260.

For two 5 x 20 mm fuses. Compact light-weight design; Capacitance: Cx 100 nF/Cy 2.2 nF. Leakage current: 373 µA. Operating voltage: 250 VAC, 50/60 Hz. Operating frequency: DC to 400 Hz. Test voltage: 2000 VAC. Connection: 6.3 x 0.8 mm solder/tab terminal combination. Test logo: UL, CSA, ENEC 14.

Technical attributes (type, rated current at +40 °C/+25 °C, rated inductance, number of fuses): FN 9260 - 4 - 06, 4.0/4.6 A, 1.0 mH

Technical specifications
Filter Property Value
min. frequency 50 Hz
min. operating temperature -25 °C
max. frequency 400 Hz
Rated current 4 A
Version IEC inlet filter C14
max. operating temperature 85 °C
With fuse Yes
ohmic resistance 1 MΩ
Inductance per line 1 mH
Number of phases 1
integrated switch No
Rated Voltage 250 VAC
Capacity X|Y X2 100 nF, Y2 2.2 nF
Connection faston plug 6.3 mm
Logistics
Property Value
Original Packaging Carton with 60 pieces
Country of origin TH
Customs tariff number 85363010
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
