FN9255B-20-07 | Schaffner

IEC inlet filter C20, 50 to 400 Hz, 16 A, 250 VAC, 300 µH, stranded wires, FN9255B-20-07

Order No.: 08D1212
EAN: 7612774686293
MPN:
FN9255B-20-07
817804
FN9255B-20-07 Schaffner Interference suppression filter

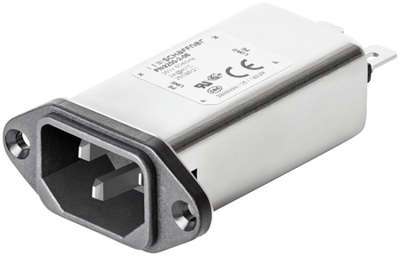

Image may differ
Unit Price (€ / pc.)
33.2605 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
1,663.03 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
33.2605 €

IEC inlet filter, FN9255B-20-07, SCHAFFNER

The FN9255B-20-07 is an IEC inlet filter that incorporates a dual stage filter into an IEC inlet and offers excellent filter attenuation in a compact housing. This product includes a wide selection of current ratings, output connections and mounting possibilities.

Features

  • Excellent performance/size ratio
  • High saturation resistance
  • Excellent thermal behavior
  • Medical version

Applications

  • LCD and OLED Displays
  • Computing & accessories
  • Test and measurement equipment
  • Portable electrical and electronic equipment
  • Single-phase power supplies, switch-mode power supplies (SMPS)
  • Medical devices (MDD)
Technical specifications
max. frequency 400 Hz
Number of phases 1
integrated switch No
Rated current 16 A
Inductance per line 300 µH
Capacity X|Y X2 100 nF
With fuse No
Version IEC inlet filter C20
min. operating temperature -25 °C
Connection stranded wires
Rated Voltage 250 VAC
max. operating temperature 85 °C
min. frequency 50 Hz
ohmic resistance 1 MΩ
Logistics
Country of origin TH
Customs tariff number 85363010
Original Packaging Carton with 50 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
